J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications

Brand Name : ZSX

Model Number : J30-37TJW

Certification : ISO9001

Place of Origin : China

MOQ : 50 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 1000000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : J30 Connector

Gender : Male

Boday Material : Metal

Insulator material : PPS

Working temperature : -55℃~+125℃

Specification : 9~74 pins

Contact Now

J30 Connectors Micro-D connectors plug connector PCB J30-37TJW
Product Overview

MIL-DTL-83513 J30 Connectors Micro-D connectors. The J30 connector is a miniature rectangular connector featuring high density, lightweight construction, and high reliability. This product adopts a plastic housing and is equivalent to the American MD series. It is widely applied in aerospace, communication, and other demanding fields.

Product Specifications
ParameterValue
Product ModelJ30-37TJW
Contact Resistance≤10mΩ
Ambient Temperature-55℃~+125℃
Insulation Resistance≥5000MΩ
Vibration10Hz~2000Hz 196m/s²
Medium Pressure Resistance800V
Random VibrationPower spectral density 0.4G²/Hz, RMS acceleration 23.1G
Mechanical Life500 cycles
Impact735m/s² 11ms
Rated Current3 A

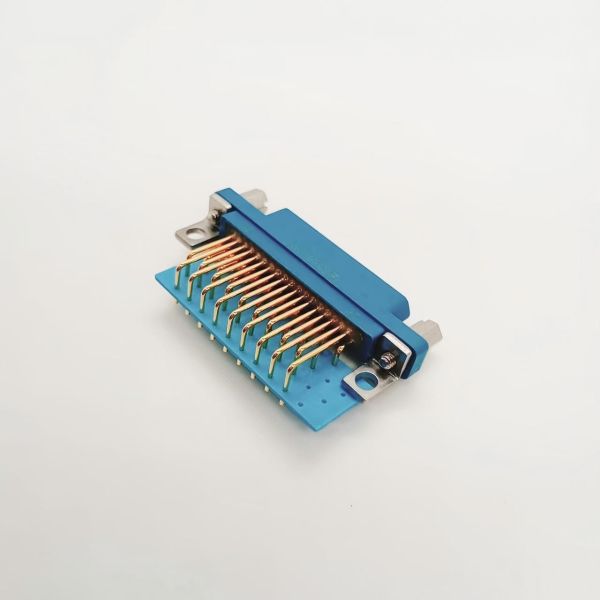

Product Display
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Product Drawings
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Plug
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Socket
Related Products
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Selection Reference
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Manufacturing Facilities
Machining Production Workshop
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Precision Assembly Production Workshop
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Glass-to-Metal Sealed Production Workshop
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Certifications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Customer Engagement
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
Packaging & Shipping
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
J30 Micro-D Connector High Density Lightweight High Reliability for Aerospace Applications
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing).
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is higher for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with the lowest shipping costs. We also offer air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
